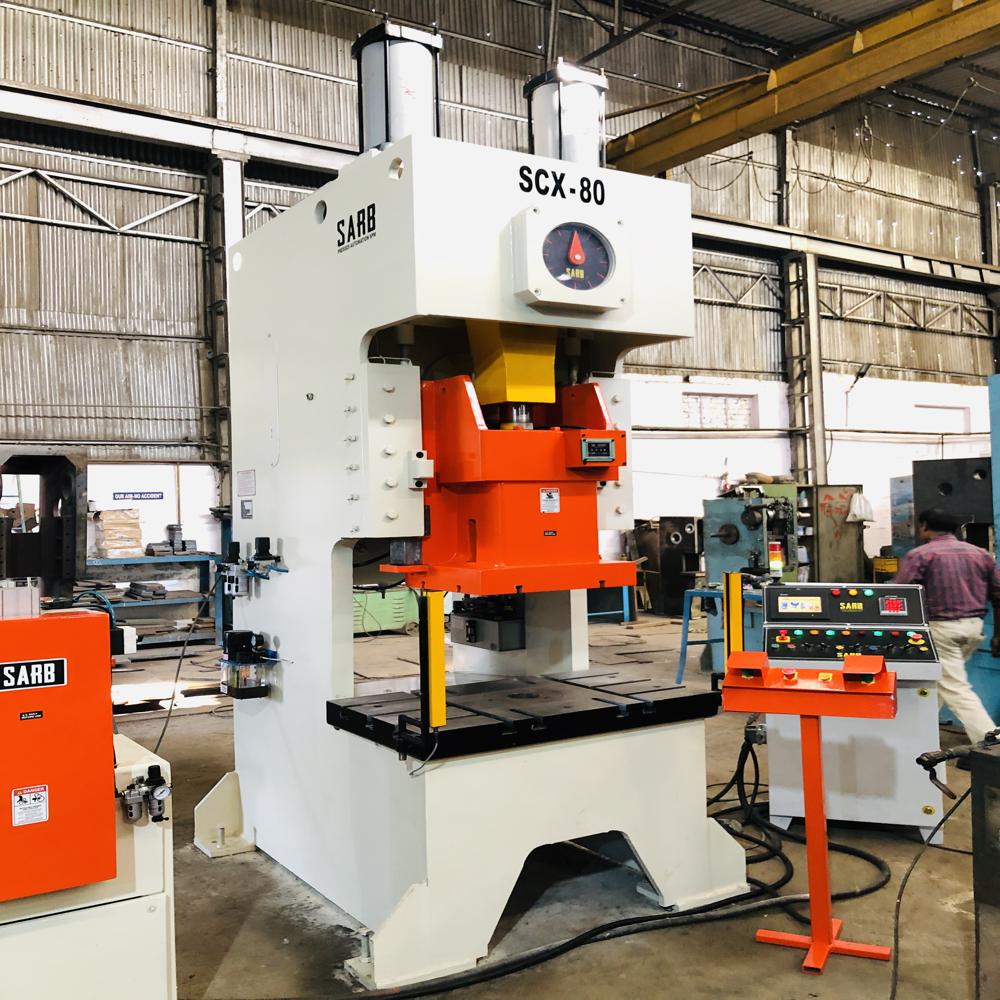

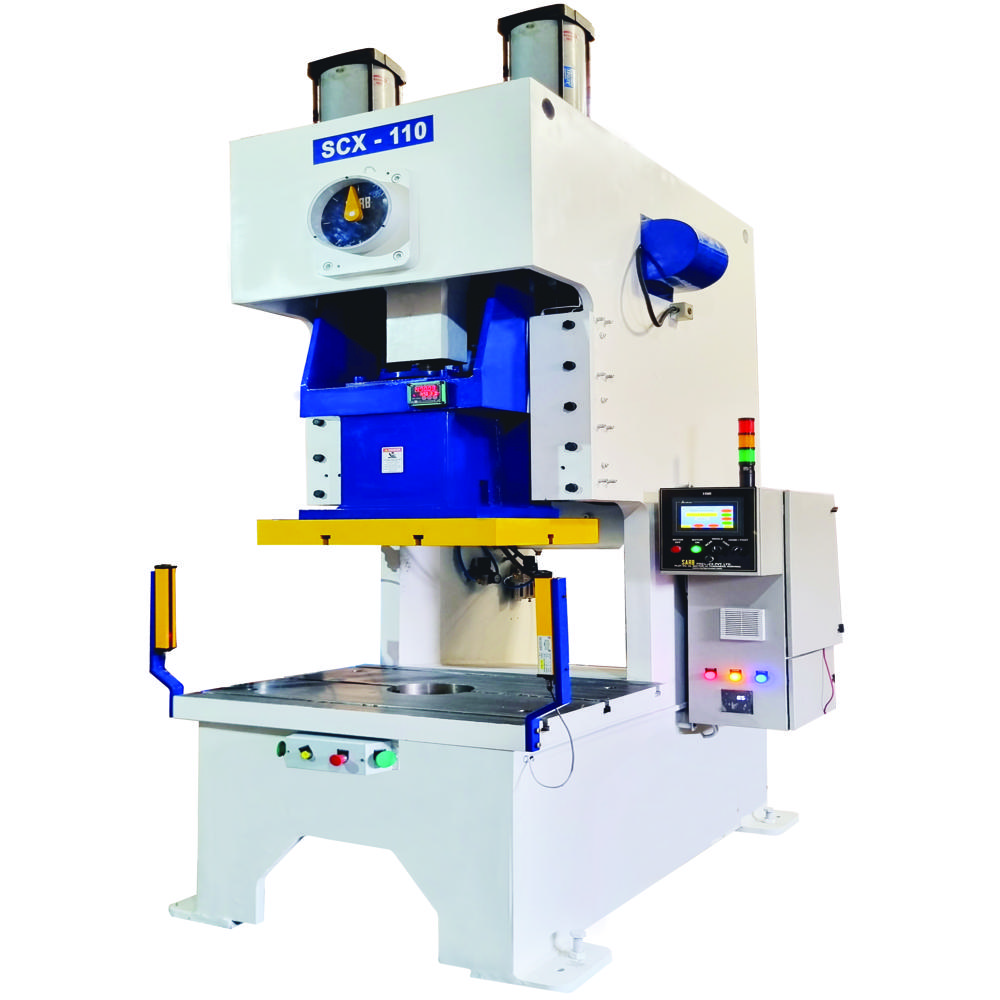

Cross Shaft Single Point Press
Product Details:
- Size Standard
- Usage Industrial
- Color Blue
- Material Mild steel
- Voltage 220-440 Volt (v)
- Click to View more
X
Cross Shaft Single Point Press Price And Quantity
- 1 Unit
Cross Shaft Single Point Press Product Specifications
- Industrial
- Blue
- Standard
- Mild steel
- 220-440 Volt (v)
Cross Shaft Single Point Press Trade Information
- Cash in Advance (CID)
- 10 Unit Per Month
- 2-10 Days
- All India
Product Description
Cross Shaft Single Point Press
Standard Accessories Supplied With Presses
- Bar ejector system in slide.
- Fly Wheel & Pneumatic Clutch Guard.
- Electrical Motor (ABB Make)
- Swing type two hand "RUN" Push button panel
- Automatic Oil Lubrication
- Preset Counter, 6 Digits
- Rotary Cam Switch, 6 Digits
Optional Accessories
- Die cushion
- Roil feed, coil cradie, scrap cutting etc.
- Special electric controls for air friction clutch
- Pneumatic feed units with decoiler and straightening unit for auto feed line.
- Hydraulic overload System
- Automatic Die Clamping
- Die Lifter.
- Photo electric safety guards.
- Anti Vibration press mounts
- Self standing Die Space Lights
- Portable T stand Two hand RUN
- Foundation Plates, Anchor Bolt
- Die Room Light
- Electronic digital die height indicator
Technical Specifications
|
Model SRB |
|
10 |
16 |
25 |
40 |
63 |
80 |
100 |
|
Capacity AtSTD Fixed Stroke20 Before BDC For Geared Presses and 10BeforeBDCForNonGeared Presses |
Tonnes |
10 |
16 |
25 |
40 |
63 |
80 |
100 |
|
Force |
KN |
100 |
160 |
250 |
400 |
630 |
800 |
1000 |
|
Stroke Fixed STD |
MM |
50 |
63 |
80 |
88 |
100 |
112 |
125 |
|
Stroke Adjust Table Optional |
MM |
8-50 |
8-63 |
8-80 |
8-88 |
8-100 |
8-112 |
8-125 |
|
Stroke Per Minute Geared Ungeared |
SPM |
75 |
75 |
70 |
65 |
60 |
56 |
45 |
|
SPM |
150 |
150 |
140 |
140 |
120 |
110 |
100 |
|
|
Slide Adjustment |
MM |
50Manual |
50Manual |
63Manual |
70Manual |
70Manual |
80Manual |
80Manual |
|
Shut Height Over BED Suat STD Stroke |
MM |
200 |
265 |
300 |
315 |
350 |
450 |
450 |
|
Shut Height Over Bolster Sdauat STD Stroke |
MM |
135 |
195 |
225 |
240 |
260 |
360 |
360 |
|
Depth of hroat |
MM |
165 |
185 |
210 |
235 |
285 |
325 |
325 |
|
Opening Back (Minimum) |
MM |
330 |
375 |
420 |
500 |
590 |
620 |
670 |
|
Slid Face LRxFB |
MM |
225x160 |
280x170 |
350x250 |
400x350 |
500x400 |
550x450 |
600x450 |
|
Shank hole |
MM |
32X50 |
40x70 |
40x70 |
50x85 |
50x85 |
50x85 |
63x85 |
|
Fly Wheel Energy Geared Non-Geared |
MKG |
100 |
200 |
390 |
660 |
1250 |
1850 |
2500 |
|
MKG |
50 |
100 |
200 |
330 |
630 |
950 |
1250 |
|
|
Size of Table (LRxFB) |
MM |
540x315 |
600x355 |
630x400 |
800x450 |
900x550 |
1000x630 |
1000x630 |
|
Bolster Thickness |
MM |
65 |
70 |
75 |
75 |
90 |
90 |
90 |
|
Bolster Clear Opening (DIA) |
MM |
110 |
130 |
150 |
150 |
160 |
160 |
160 |
|
Opening Table (LRxFB) |
MM |
220x160 |
280x200 |
315x224 |
355x250 |
400x280 |
450x315 |
500x355 |
|
Distance From Floor To Top of Bolster |
MM |
800 |
800 |
800 |
900 |
900 |
900 |
900 |
|
Main Motor Geared Non-Geared |
KW/RPM |
1.1/1500 |
1.5/1500 |
2.2/1500 |
3.7/1500 |
5.5/1500 |
7.5/1500 |
7.5/1500 |
|
KW/RPM |
1.1/1000 |
1.5/1000 |
2.2/1000 |
3.7/1000 |
5.5/1000 |
7.5/1000 |
7.5/1000 |
|
|
Slide Motor |
KW/RPM |
- |
- |
- |
- |
- |
- |
- |
|
Air Pressurize For Clutch |
KG.CM |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
|
Cushion Cap At 7.3KG.CM |
Tonne |
1.6 |
1.6 |
1.6 |
4.4 |
7.0 |
10.0 |
13.7 |
|
Over All Dimensions Appox. Height LRxFB |
MM |
2200 |
2400 |
2500 |
2800 |
3500 |
3700 |
3850 |
|
MM |
900 |
950 |
1050 |
1250 |
1400 |
1500 |
1600 |
|
|
MM |
1000 |
1150 |
1250 |
1400 |
1750 |
1800 |
1850 |
|
|
Net wt. (APPROX) Non Geared/Geared |
KGS |
1100/1300 |
1900/2150 |
2800/3500 |
4500/4800 |
6000/6300 |
8000/8500 |
9500/10100 |
|
Model SRB |
|
125 |
160 |
200 |
250 |
315 |
400 |
|
Capacity AtSTD Fixed Stroke20 Before BDC For Geared Presses and 10BeforeBDCForNonGeared Presses |
Tonnes |
125 |
160 |
200 |
250 |
315 |
400 |
|
Force |
KN |
1250 |
1600 |
2000 |
2500 |
3150 |
4000 |
|
Stroke Fixed STD |
MM |
160 |
160 |
200 |
200 |
200 |
250 |
|
Stroke Adjust Table Optional |
MM |
8-160 |
8-160 |
20-160 |
20-160 |
20-160 |
- |
|
Stroke Per Minute Geared Ungeared |
SPM |
40 |
40 |
40 |
35 |
35 |
20 |
|
SPM |
- |
- |
- |
- |
- |
- |
|
|
Slide Adjustment |
MM |
125Motorised |
125Motorised |
125Motorised |
125Motorised |
125Motorised |
125Motorised |
|
Shut Height Over BED Suat STD Stroke |
MM |
500 |
500 |
560 |
560 |
630 |
700 |
|
Shut Height Over Bolster Sdauat STD Stroke |
MM |
388 |
380 |
410 |
410 |
480 |
525 |
|
Depth of throat |
MM |
365 |
385 |
410 |
410 |
510 |
510 |
|
Opening Back (Minimum) |
MM |
670 |
775 |
900 |
900 |
1000 |
1000 |
|
Slid Face LRxFB |
MM |
710x600 |
710x600 |
900x800 |
900x800 |
1200x1800 |
1200x1800 |
|
Shank hole |
MM |
63x85 |
63x105 |
80x110 |
80x110 |
80x110 |
80x110 |
|
Fly Wheel Energy Geared Non-Geared |
MKG |
4000 |
5000 |
7800 |
9800 |
13500 |
20000 |
|
MKG |
- |
- |
- |
- |
- |
- |
|
|
Size of Table (LRxFB) |
MM |
1120x750 |
11200x800 |
1250x800 |
1250x800 |
1450x900 |
1450x900 |
|
Bolster Thickness |
MM |
112 |
120 |
150 |
150 |
150 |
175 |
|
Bolster Clear Opening (DIA) |
MM |
160 |
175 |
200 |
200 |
225 |
225 |
|
Opening Table (LRxFB) |
MM |
560x400 |
560x450 |
630x450 |
630x500 |
900x560 |
900x560 |
|
Distance From Floor To Top of Bolster |
MM |
900 |
900 |
900 |
900 |
900 |
900 |
|
Main Motor Geared Non-Geared |
KW/RPM |
11/1500 |
15/1500 |
15/1500 |
18.5/1500 |
22/1500 |
30/1500 |
|
KW/RPM |
- |
- |
- |
- |
- |
- |
|
|
Slide Motor |
KW/RPM |
1.1/1500 |
1.5/1500 |
1.5/1500 |
1.5/1500 |
2.2/1500 |
2.2/1500 |
|
Air Pressurize For Clutch |
KG.CM |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
5.5 |
|
Cushion Cap At 7.3KG.CM |
Tonne |
13.7 |
18.0 |
18.0 |
28.0 |
28.0 |
28.0 |
|
Over All Dimensions Appox Height LRxFB |
MM |
3900 |
4100 |
4400 |
4500 |
4700 |
5000 |
|
MM |
1650 |
1750 |
1900 |
1950 |
2000 |
2050 |
|
|
MM |
2150 |
2350 |
2600 |
3050 |
3200 |
3500 |
|
|
Net wt .(APPROX) Non Geared/Geared |
KGS |
12500 |
17500 |
21000 |
27500 |
30500 |
33500 |
