Straight Side Double Point Power Press
Product Details:
- Size Standard
- Usage Industrial
- Material Mild steel
- Voltage 220-440 Volt (v)
- Warranty 1-2 Years
- Click to View more
X
Straight Side Double Point Power Press Price And Quantity
- 1 Unit
Straight Side Double Point Power Press Product Specifications
- Standard
- Mild steel
- 1-2 Years
- Industrial
- 220-440 Volt (v)
Straight Side Double Point Power Press Trade Information
- Cash in Advance (CID)
- 10 Unit Per Month
- 2-10 Days
- All India
Product Description

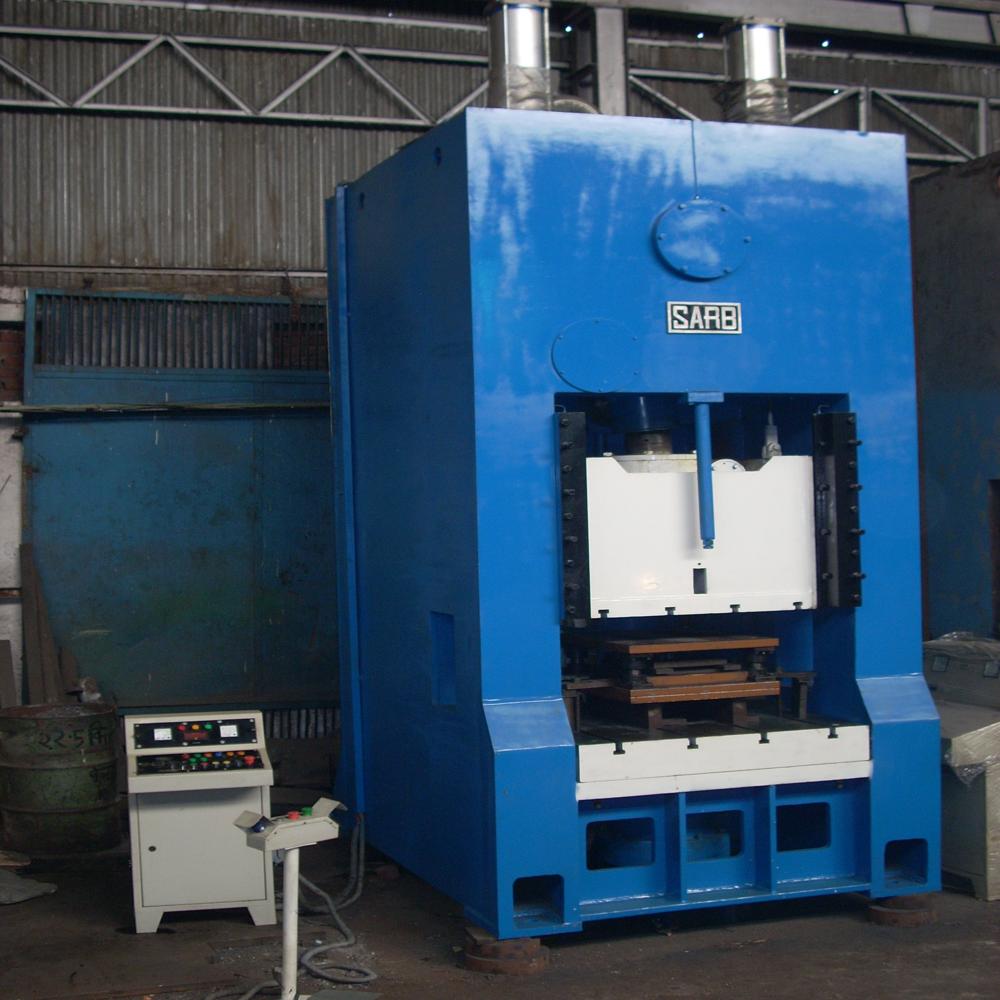

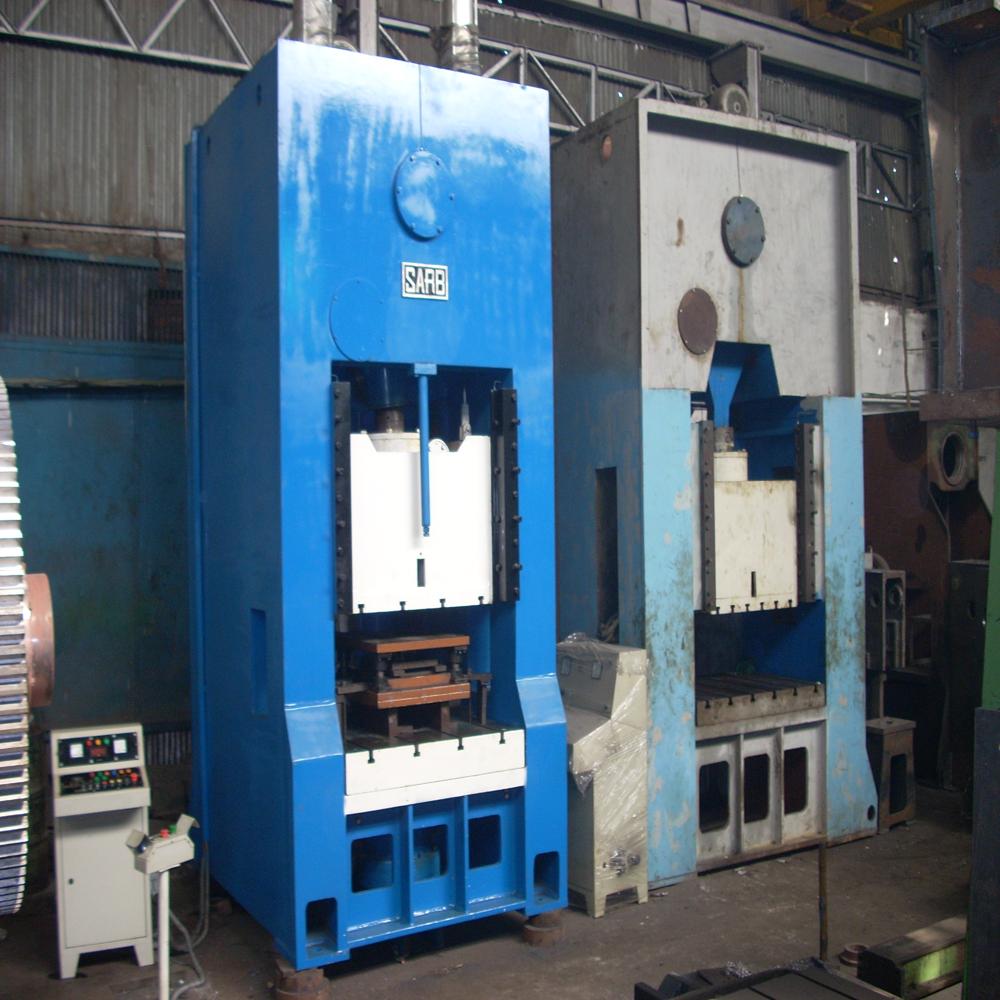

Straight Side Double Point Power Press
Standard Accessories Supplied With Presses
Standard Accessories Supplied With Presses
- Inclining Mechanism (for inclinable presses)
- Bar ejector system in slide.
- Fly Wheel & Pneumatic Clutch Guard.
- Electrical Motor (ABB Make)
- Swing type two hand "RUN" Push button panel Automatic Oil Lubrication
- Preset Counter, 6 Digits Rotary Cam Switch, 6 Digits
- Roil feed, coil cradie, scrap cutting etc.
- Special electric controls for air friction clutch
- Pneumatic feed units with decoiler and straightening unit for auto feed line.
- Hydraulic overload System Automatic Die Clamping
- Die Lifter.
- Photo electric safety guards.
- Anti Vibration press mounts
- Self standing Die Space Lights
- Portable T stand Two hand RUN
- Foundation Plates, Anchor Bolt
- Die Room Light
- Electronic digital die height indicator
|
Capacity |
Tone |
100 |
150 |
200 |
250 |
|
Slide Stroke |
mm |
200 |
250 |
250 |
300 |
|
Shut Height |
mm |
350 |
400 |
450 |
450 |
|
Area of Bolster LRxFB |
mm |
1000x800 |
1000x1000 |
1100x1000 |
1300x1000 |
|
mm |
1200 x 1000 |
1500 x 1000 |
1600 x 1000 |
1600 x 1100 |
|
|
mm |
1500 x 1200 |
1500 x 1200 |
2000 x 1300 |
1800 x 1200 |
|
|
mm |
- |
- |
- |
2000 x 1300 |
|
|
Area of Slide LRxFB |
mm |
900x800 |
900x800 |
950x850 |
1150x900 |
|
mm |
1100 x 800 |
1350 x 800 |
1450 x 1000 |
1450 x 1000 |
|
|
mm |
- |
- |
1800 x 1100 |
1600 x 1000 |
|
|
mm |
- |
- |
- |
1800 x 1100 |
|
|
Adjustment of Slide |
mm |
100 |
100 |
100 |
120 |
|
No. of Slide Strokes |
S.P.M |
30 |
30 |
30 |
25 |
|
Thickness pf Bolster |
mm |
120 |
120 |
150 |
150 |
|
Main Driving Motor |
kw |
11 |
15 |
15 |
22 |
|
Slide Adjustment Motor |
kw |
0.75 |
1.5 |
1.5 |
2.2 |
|
Required Air Pressure |
KG.CM |
5.5 |
5.5 |
5.5 |
5.5 |
|
Capacity |
Tone |
300 |
400 |
500 |
|
Slide Stroke |
mm |
300 |
300 |
350 |
|
Shut Height |
mm |
500 |
500 |
600 |
|
Area of Bolster LRxFB |
mm |
1300x1000 |
1300x1000 |
1600x1100 |
|
mm |
1600x1100 |
1600x1100 |
1800x1200 |
|
|
mm |
1800x1200 |
1800x1200 |
2200x1300 |
|
|
mm |
2000x1300 |
2200x1300 |
2500x1500 |
|
|
Area of Slide LRxFB |
mm |
1150x900 |
1150x900 |
1450x1000 |
|
mm |
1450x1000 |
1450x1000 |
1630x1000 |
|
|
mm |
1600x1000 |
1600x1000 |
2000x1100 |
|
|
mm |
2000x1100 |
2000x1100 |
2300x1200 |
|
|
Adjustment of Slide |
mm |
150 |
150 |
200 |
|
No. of Slide Strokes |
S.P.M |
20 |
20 |
15 |
|
Thickness of Bolster |
mm |
180 |
180 |
200 |
|
Main Driving Motor |
kw |
22 |
37 |
45 |
|
Slide Adjustment Motor |
kw |
2.2 |
2.2 |
3.7 |
|
Required Air Pressure |
KG.CM Sq. |
5.5 |
5.5 |
5.5 |
